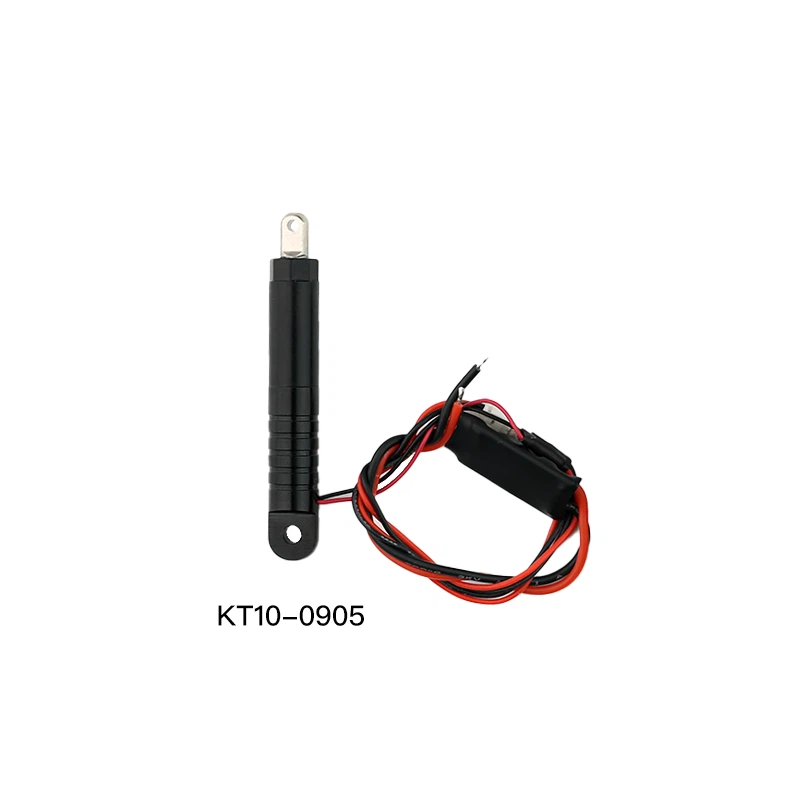

Micro Electric Actuator
Product model: KT10-0905H
Product material: 7075 aluminum alloy + Hpd-59 brass
Stroke: 10mm (customizable)
Total length: 61mm
Push-pull force: 300g
No-load push-pull speed: 9mm/s
Protection current: 0.2A
Rated voltage: 5V
Noise: ≤50dB
Protection level: IP56
Self-locking force: greater than 10KG
Product Introduction
A micro electric actuator is a miniature electric actuator suitable for robots, medical devices, model devices, and automation systems, used to achieve high-precision linear motion within confined spaces.

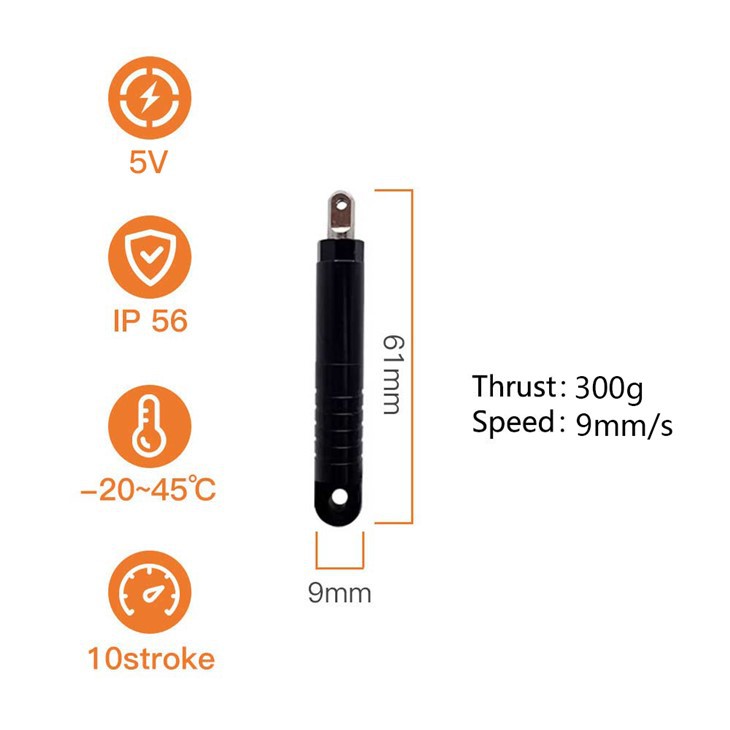

Product Parameters
|
Product Name |
Product Model |
|
Mini ELectric Actuator |
KT10-0905/0903 |
|
Product Materials |
Product Stroke |
|
7075 Aluminum Alloy + Hpb-59 Brass |
10mm(Longerstroke can be customized) |
|
Protection Current |
Rated voltage |
|
0.2A |
5V DC |
|
Noise |
Self-locking force |
|
<50dB |
>10KG |
Product Features
High-Precision Control: The micro electric actuator utilizes a high-torque 5V DC motor and precision lead screw drive, achieving a displacement accuracy of ±0.01mm.
Materials and Manufacturing Process: The body is constructed from 7075 aviation-grade aluminum alloy, coupled with HPb-59 brass push rods, offering high strength and corrosion resistance. The entire assembly undergoes CNC machining and anodizing, resulting in a robust and rust-resistant appearance.
Superior Protection: The sealed structural design achieves an IP56 rating, providing dust and splash protection.
Customizable: Stroke, thrust, voltage, and mounting structure can all be customized.
Product Application
In The Robotics Industry
Micro electric actuators are primarily used to control the opening and closing movements of robotic arm joints or grippers.
In The Medical Equipment Field
They are used in infusion pumps, diagnostic instruments, and image positioning systems.
In The Aerospace Model Field
They are used for control surfaces, landing gear, and door control.
In Smart Home Systems
They are used in curtains, electrically controlled vents, and security door locks to enable remote control and automatic adjustment.
certifications
We have obtained authoritative certifications, including CE, RoHS, SGS testing, quality management system, and multiple patents.
our company
Founded in 2015, our company has over 10 years of experience specializing in the research, development, and production of miniature electric linear actuators and electric actuator systems.
Equipment
The company is equipped with six types of testing equipment, including a DC low resistance tester, wire bending test machine, quadratic element measuring instrument, insertion and extraction force tester, insulation resistance tester, and salt spray testing machine, ensuring stable product performance and quality.
Our Advantages
Comprehensive Patents and Certifications
We hold over 30 national patents and have passed multiple international certifications including CE, RoHS, CCC, TUV, and ISO9001:2015.
Strong Independent R&D Capabilities
We have a professional design and R&D team, continuously launching innovative miniature electric linear actuators and electric actuator products.
Extensive International Market Coverage
Our products are sold to more than 60 countries and regions worldwide, and we have established a stable international cooperation network.
Advanced Production Equipment
We have introduced modern equipment such as Swiss-made lathes, electric press machines, and RoHS analyzers to ensure production precision and efficiency.
